Electro-Sensors, Inc.

6111 Blue Circle Drive
Minnetonka, MN 55343
Electro-Sensors, Inc.

Key Personnel

Company Info

Electro-Sensors, Inc.

Electro-Sensors - M100T and M5000T Speed Switch

Zero speed switches have an internal speed sensor to detect unwanted slowdown or stoppage of process equipment.

Electro-Sensors, Inc. Products & Services

To request more info, check the box(es), fill out the form below, and your request will be submitted.

Monitoring

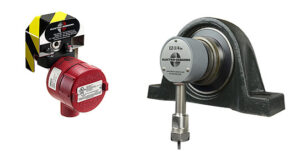

Speed Sensors and Switches

Speed Sensors

• (4-20 mA or 0-10 VDC) Analog or (NPN or PNP) Pulse Signal Outputs.

• Single or quadrature (bi-directional) outputs.

• Large gap, non-contact sensing.

• Explosion proof (XP), intrinsically safe (IS), and dust-Ignition-proof (DIP) options.

• No user calibration.

Speed Switches

• Relay output or relay output with additional 4-20 mA output.

• Under speed, over speed, zero speed, or reverse detection.

• Single or multiple setpoints.

• Failsafe operation.

Speed Sensors Electro Sensors

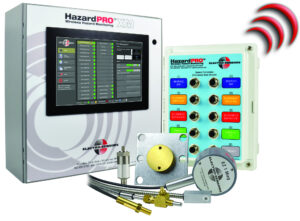

HazardPRO™ Wireless Hazard Monitoring

  • Vibration, speed, bearing, ambient, and alignment sensors.
  • Monitor trippers, elevators, conveyors, grain binsweep etc.
  • Live sensor data via Modbus or Ethernet IP.
  • Graphed history of sensor performance.
  • Fastest install times.
  • Lower total installed cost (no conduit).
  • Class II, Div. 1 sensors and nodes.
Div1 Xl Group T1 2019 W

Monitoring

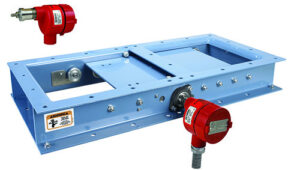

4-20 mA or Two-Relay Output Position Monitors

• Absolute encoder-based feedback.

• Simple push-button calibration.

• Retains gate position in the event of power loss.

• Rugged, explosion proof, and NEMA 4X enclosures.

• Multiple mounting options for position feedback on:

> Slide gates.

> Distributor heads.

> Valves.

> Clam shell buckets.

> Gates.

> Screens.

Sg1000A

Monitoring

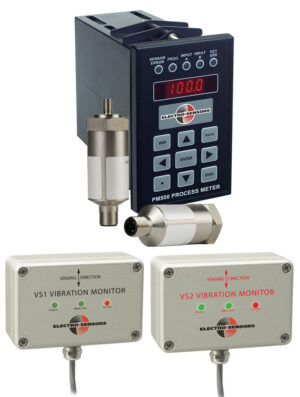

Vibration Sensors and Switches

VT420 – 4-20mA output vibration sensor

• Measures 2 in/S RMS.

• NEMA 4X enclosure.

• Optional PM500 process meter display.

VS1

• Low-level vibration switch.

• 0.1-2.2 in/S trip-point range.

VS2

• High-level vibration switch.

• 2.0-26 in/S trip-point range.

Vs1 Vs2

Bearing Sensors

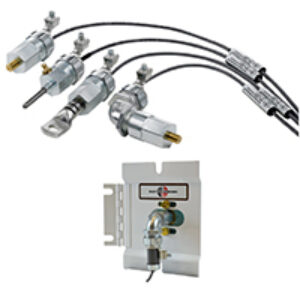

Temperature Sensors and Belt Alignment

TT420

• 2-wire, loop-powered 4-20mA analog output.

• UL listed, intrinsically safe (I.S.).

TT420-LT

• Liquid-tight (LT) conduit fittings.

• FM approved, dust ignition-proof.

RTD/RTD-LT

• 3-wire, RTD output.

• Intrinsically safe (I.S.).

Rub block door assemblies.

• Standard hinged, adjustable, and uni-strut.

Temperature Sensors
