Grain Belt Supply Co. Inc.

Grain Belt is a single source metal fabrication superstore for manufacturing companies who need Laser Cutting and Powder Coating services for producing parts with just-in-time deliveries to match their production schedules.

Key Personnel

  • Marc Wingo , President
  • Ben Hansen , Sales Manager
  • Will Smith , Laser Manager
  • Dale Cuthbertson , Fabrication Manager
  • Ray Dreher , Powder Coat Manager
  • Ann Conway , Accounting Manager

Company Info

Other essential services include Waterjet Cutting, Plasma Cutting, Blasting, Welding and Assembly.

A fully staffed engineering department is available to assist from concept to completion on manufacturing projects.

Grain Belt engineers can help with research and development, product design, reverse engineering and determine the right material for applications. They have the ability to translate your sketch, plan or drawings into a single part or a complete machine.

Grain Belt is centrally located where I-70 and I-135 intersect on an accessible modern campus of buildings with over 230,000 square feet of manufacturing and warehouse space.

Manufacturing companies from across the country utilize Grain Belt's contract manufacturing services to produce as little as a few cut parts to fulfilling complete assembled and finished machines ready to sell.

Product Lineup

Grain Belt Supply Co. Inc. Products & Services

To request more info, check the box(es), fill out the form below, and your request will be submitted.

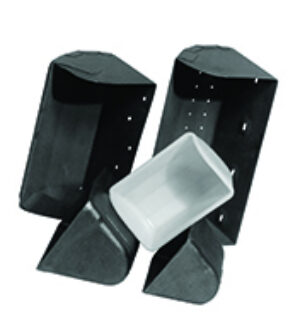

Superior Line

  • Grain belt manufacturers over 22 styles of elevator buckets in hundred of sizes.
  • Buckets; both in stock and custom built.
  • Superior plastic buckets.
  • Stainless steel, ductile iron, carbon steel aluminum, polyethylene, galvanized special alloys.
  • Options include: Venting, special punching, lip brace, wear strips, braces: front, center, back, corner, sides, relief holes, low profile.
Buckets

Distributors

  • Large inspection door provides complete access to distributor spout mechanism.
  • 45 inches.
  • Sealed flow.
  • For tight space applications.
  • Positive lock flow.
  • Space savers.

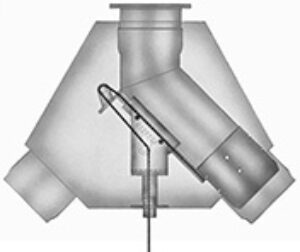

Distributor Drawing Bw

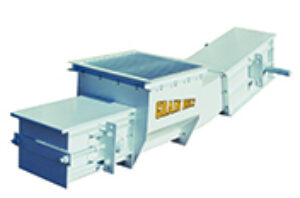

Drag Conveyors

  • Flat bottom and round bottom.
  • Horizontal or incline designs.
  • Capacities to 50,000 bph.
  • Move grain fast and efficiently with less horsepower than a screw conveyor.
  • Minimize breakage with limited metal to grain contact.
  • Sealed design to contain dust and reduce moisture.
  • Trough lengths available up to 20 ft., standard length is 10 ft.
  • Component parts are fabricated with CNC laser and brakes for precision fit and ease of installation.
Drag Conveyor Custom

Probes

Three types of 100% brass probes:

  • Brass Open Handle—(our most popular) Allows grain to enter at all levels simultaneously and empties through handle opening.
  • Brass Compartmentalized—Allows the collection and separation of samples at different probe depths.
  • Spiral Brass Open Handled—Allows the sequential sampling of grain. Probe gates open and close at different times while the probe handle is turned by the operator.
  • Available in lengths of 40 to 144 in. Spiral probes are available in 40 to 96 in.
Grain Probe

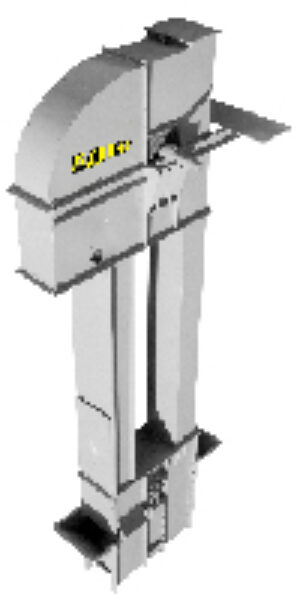

Bucket Elevators

  • 500 bph to 8,000 bph units in stock.
  • 8,000 to 15,000 bph stock industrial duty bucket elevators.
  • Up to 20,000 bph capacity elevators.
  • Custom manufacture any bucket elevator to specifications.
  • Powder coated.
  • Catwalks, steel ladders, and cages.
Gbs Grain Belt
