Honeyville Metal

4200S 900W
Topeka, IN 46571
Honeyville Metal

Key Personnel

Company Info

Honeyville Metal Products & Services

To request more info, check the box(es), fill out the form below, and your request will be submitted.

Bucket Elevators

  • Capacities up to 32,000 bph in galvanized or stainless steel construction.
  • Slide lagged head pulleys with no-tool access covers for replacing lagging.
  • Head & boot hot-dipped galvanized after welding.
  • Hinged head covers for improved safety of the service personal.
  • Galvanized legging-twin box; jig welded for correct alignment.
  • Hinged inspection door for easy access to belt and buckets.
  • Class II gear reducers, drives and guards factory installed.
  • Personal fall arrest system by Honeywell / Miller on service ladders.
Honeyville Bucket Elevators and Support Towers

EFR Series High Pressure Baghouse Filter

  • Honeyville Metal manufactures a complete line of dust collection equipment. Fans, cyclones, airlocks, and filters, up to 58,000 cfm.
  • 110º involute cone section inlet.
  • Explosion relief panels.
  • 16 oz. mirror finish bags with galvanized wire cages.
  • No-tool top removal bags.
  • Cone inspection cover.
  • Pulse Jet high pressure bag cleaning.
Honeyville Efr

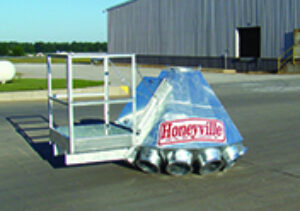

Distributors

  • Original brush seal design with no up or down movement on inside swing-spout.
  • 8 Models 6” through 20” in 45º or 60º flow, flat back and full round, up to 18 outlets.
  • Hot-dip galvanized with no-tools service door & optional service door platform.
  • Positive locking stainless steel index plate located under distributor for protection from dust and weather issues on manual control models.
  • Expanded throat on internal swing-spout, optional urethane liners for extended life on all wear surfaces.
  • Swing-spout assembly rotates on (4) guide bearings at the top and a flange ball bearing at the bottom for a smooth and easy movement.
  • Electronic position control optional in place of pipe or cable controls.
Distributor Door Platform

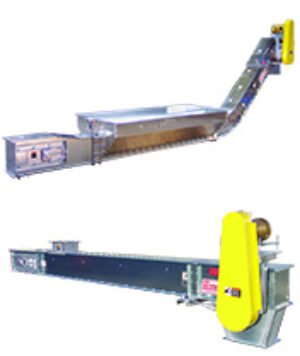

Drag Conveyors

  • Capacities up to 26,000 bph in galvanized or stainless steel construction.
  • Horizontal enmasse with optional ar-200 bottom and side liners.
  • 45° Incline farm line with pit hoppers and grates, optional ar-200 bottom liners.
  • 45° Incline industrial line with pit hoppers and grates, optional ar-200 or 400 bottom and side liners.
  • 45° Incline reclaim under grain bin floor with gates, optional ar-200 bottom liners.
  • All bolted construction for easy installation and service.
  • Uhmw flights bolted to chain attachments, chain and paddles factory installed in horizontal drag trunk sections.
  • Class II gears reducers, drives and guards factory installed.
Incline Conveyor 4C

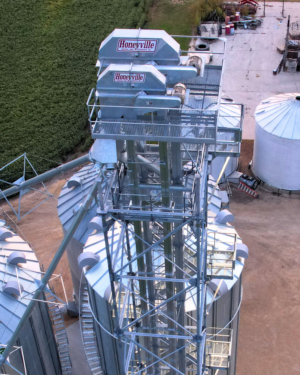

Bucket Elevator Support Towers

  • Galvanized bolted construction with hot-dip galvanized weldments.
  • Pre-assembled with handrails only knocked down to reduce field labor.
  • Bottom box truss design with 24 in. wide gripstrut walkways and handrails.
  • 46 in. x 24 in. model for 40 ft. clear spans and 72 in. x 30 in. model for 60 ft. clear spans.
  • 4-leg support towers for each catwalk model.
  • 2-leg bin sidewall towers with bin stiffener adjustable anchors.
  • Engineered for supporting horizontal and incline drag conveyors.
Honeyville Bucket Elevators and Support Towers
